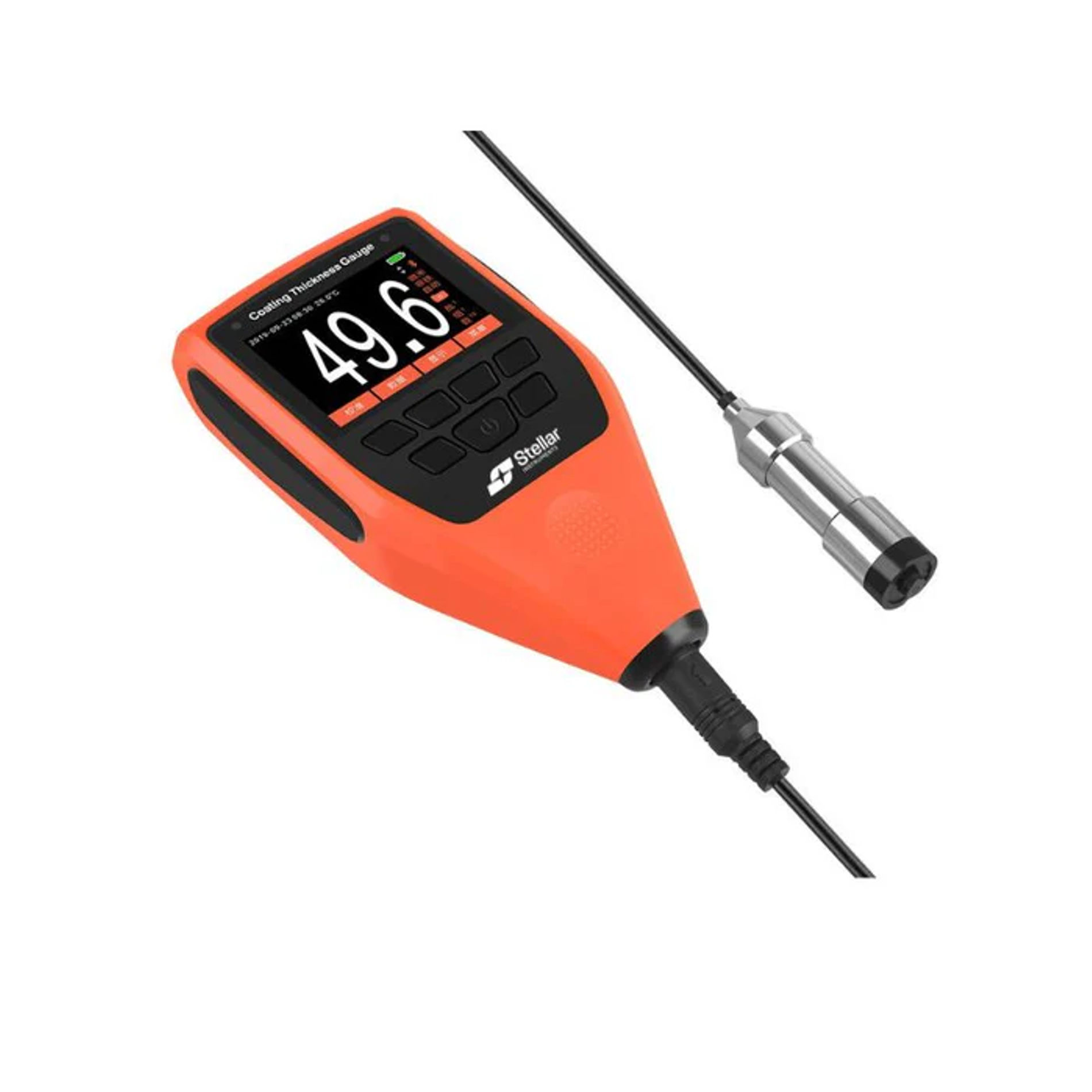

Click to expand Coating Thickness Gauge CX800

The CX800 Coating Thickness Gauge is a professional device for non-destructive thickness measurement of non-conductive coatings on metal surfaces and non-ferromagnetic coatings on ferromagnetic metals like iron, nickel, and cobalt. Ideal for a wide range of applications, it can measure paint thickness on steel, galvanized layers, or plastic films on aluminum and copper. With a high-resolution external sensor integrating magnetic induction and eddy current principles, the CX800 delivers accurate, reliable, and consistent results for industrial and laboratory use

Key Features

• High Accuracy: Measurement accuracy of ±(2%+1μm) for precise readings.
• Wide Measuring Range: Supports thickness measurements from 0 to 2000μm.
• High Resolution: Resolution of up to 0.1μm for detailed analysis.
• External Sensor: Equipped with an integrated probe combining magnetic induction and eddy current effects.
• Large Color Display: 2.4-inch screen with adjustable backlight brightness for clear visibility.
• Multiple Measurement Units: Displays results in μm, mils, mm, or inches for flexibility.
• Statistical Analysis: Includes features like max/min readings, mean, sample standard deviation, and coefficient of variation.
• Customizable Alerts: Displays the number of readings above or below the preset limits.
• Data Representation: Provides data insights through curves, bar charts, and trend charts.
• Durable Build: Lightweight housing designed for portable use.
